4K 60HZ HDMI Video Capture Card Device Box for Video Recording Live Streaming
4K 60HZ HDMI Video Capture Card Device Box for Video Recording Live Streaming
Ⅰ.Product Parameters
| Product Name | HDMI Video Capture With Audio |
| Input Resolution | Maximum 4k@60Hz 4:4:4 |
| Output Resolution | Maximum 4k@60Hz |
| Video Output Mode | MJPEG/YUY2/NV12/I420/XRGB |
| Max Bandwidth | 600MHz |
| Max Baud Rate | 18Gbps |
| Support Audio Format | Meet the UVC and UAC standards |
| Warranty | 1 Year |
The HDMI video capture can capture HDMI video and HDMI audio with MIC audio mix. It can transmit audio signal to computer and smartphone to preview and storage,
suitable for game live meetings, the HD recording supports the XRGB format.
* Supports HDCP2.2/HDCP1.4/HDR10.
* Input: 4k HDMI2.0 input, microphone input.
* Output: 4k HDMI 2.0 loop out, Type-c (5Gbps) output, audio output.
* Automatic detection of the input signals, resolution up to 4K@60Hz.
* Support video format: MJPEG/YUY2/NV12/I420/XRGB.
* Uncompressed video and audio acquisition, meet the UVC and UAC standards.
* USB Type-c power supply, plug and play, no drive.
* Compatible with Windows, MacOS.
* Compatible OBS, Potplayer, VLC, Vmix and etc.

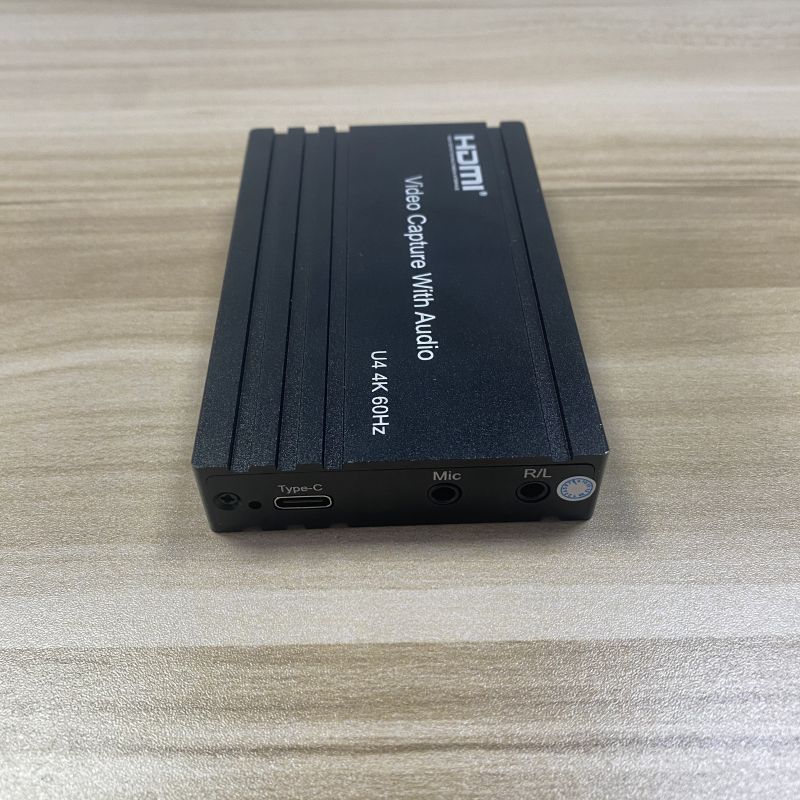

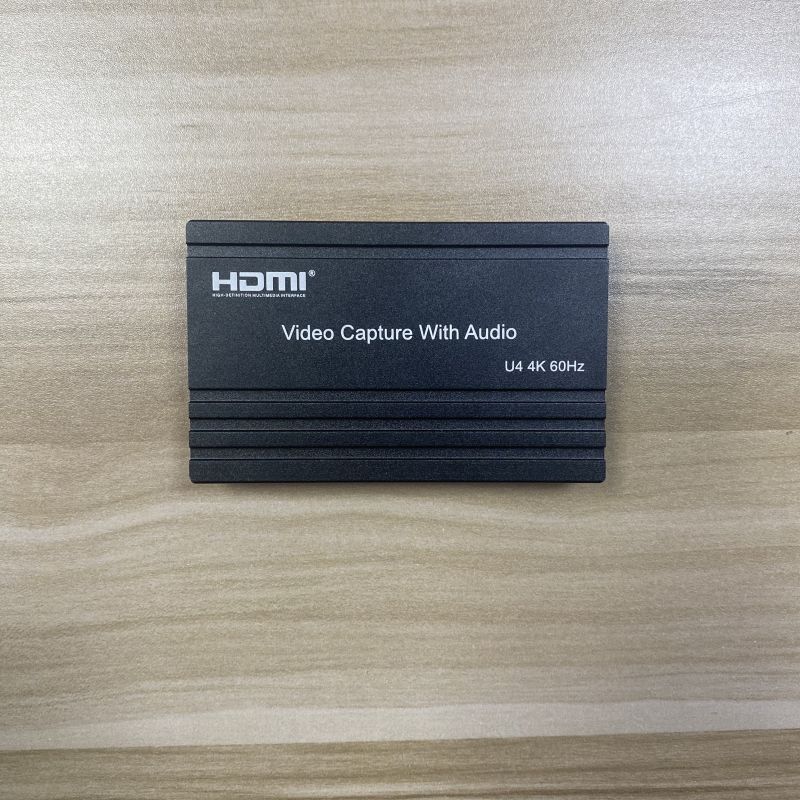

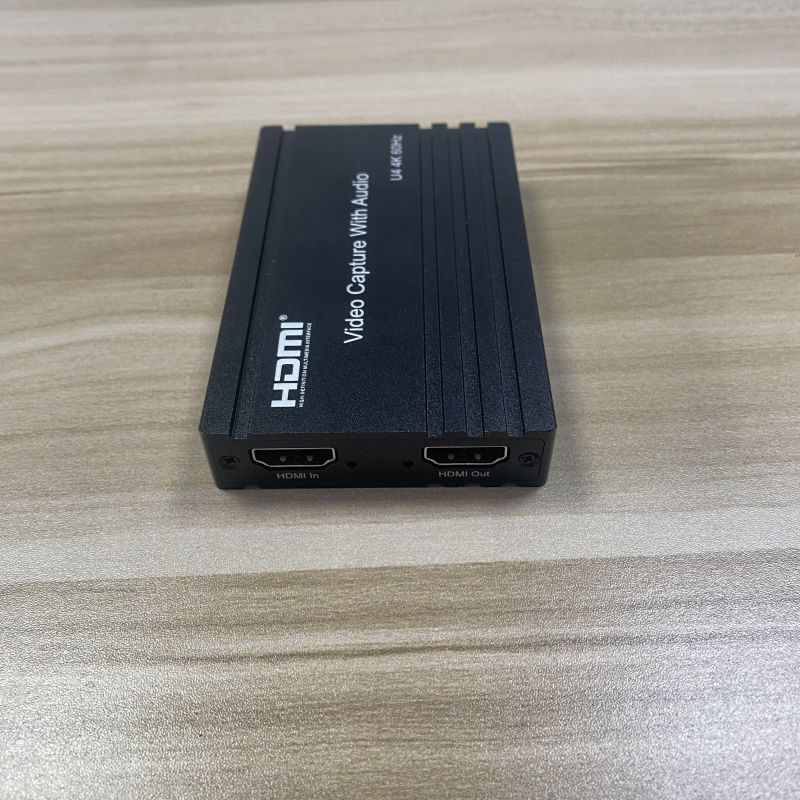

Ⅱ.Product Image
