DTECH 50m USB2.0/1.1 Super Extender over Single LAN Cat5e/6 Ethernet Cable USB Extender for U Disk Projector

Product Description

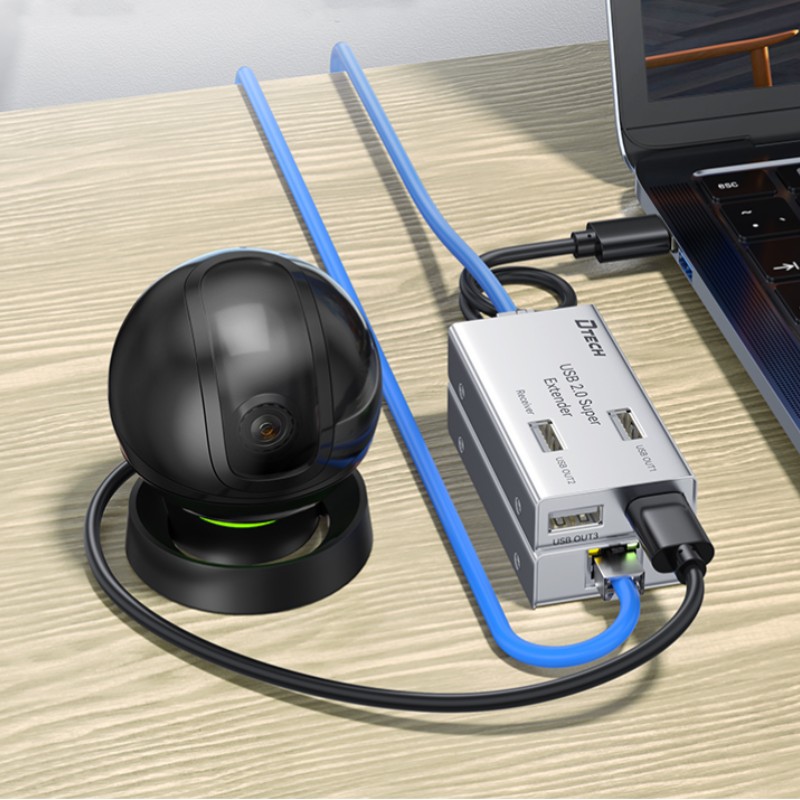

Connection Instruction

1. Connect one end of the AM data cable to the computer host, the other end to “USB IN” port of extender’s sender, the sender no need power supply.

2. Connect one end of the LAN cable to the sender’s ”CAT5e” port,  the other end to the “CAT5e” port of the receiver.

3. Insert the 5V output of power adapter into the extender’s power ports, plug external USB device to ”USB OUT” port.

Product Parameters

1. USB signals transmitted by a single LAN cable, easy to use and install,  it can be extended up to 50m via LAN cable.

2.USB2.0 interface, transfer rate up to 480Mbps, backward compatible  with USB1.1

3. Transmit uncompressed signals, transmit speed can reach the USB2.0 standard speed.

4. Supports standard CAT5/CAT5E and CAT6.

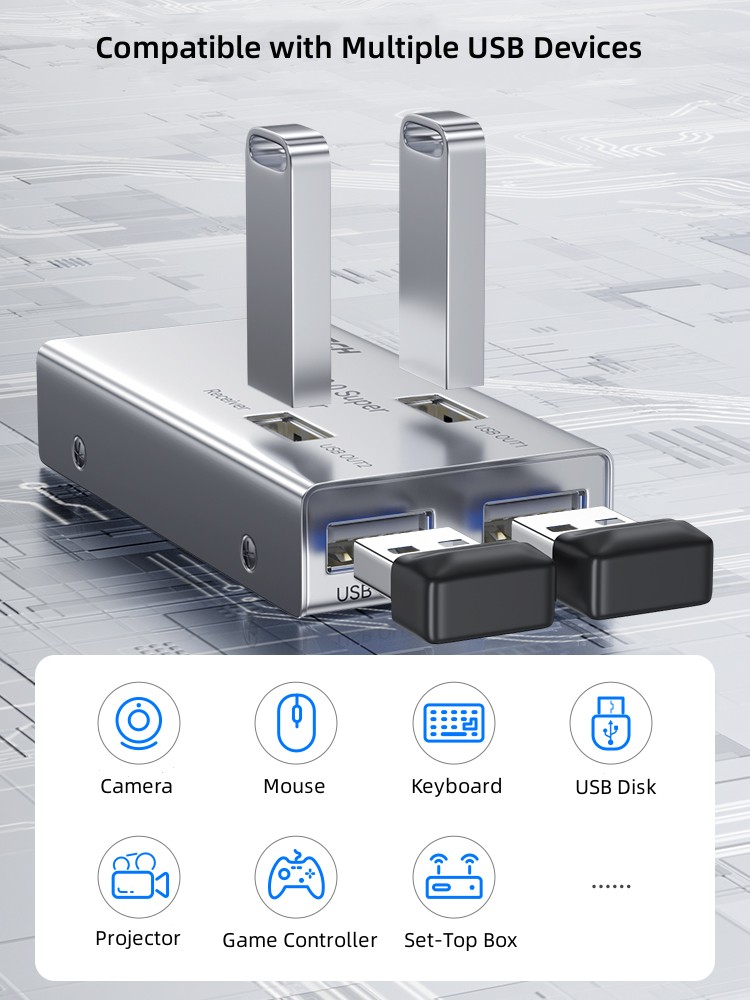

5. Can connect all USB devices, printers, network cameras, hard drives, mobile phones, digital cameras, game controller, etc.

6. Rated input voltage:5V; input current: external power supply 1000mA

7. Operating temperature range (-15℃ to +75 ℃)

8. Product Dimensions: sender, receiver (L * W * H) 82X45X22 (mm)

9. Product net weight: 205g±10g

Package and Accessories

1. USB 2.0 Extender (sender & receiver)*1pc

2. USB  AM-AM Data Cable *1pc

3. 5V/1A power adapter *1pc

(Please use our power adapter, if use other power adapter and result in product damage, not belong to the warranty scope.)

user manual *1pc
