DTECH DT-5019(2nd) USB 2.0 Male to RS485 RS422 Serial Port Device Adapter Converter Extend Cable 0.5m 1.5m
DTECH DT-5019(2nd) USB 2.0 Male to RS485 RS422 Serial Port Device Adapter Converter Extend Cable 0.5m 1.5m
Ⅰ. Product Parameters
| Product Name | USB2.0 to RS422/485 Cable |
| Brand | DTECH |
| Model | DT-5019(2nd) |
| Interface Compatibility | RS422/RS485 standard |
| Product Chip | Built in US CP2102+SP485 chips |
| Signal Indication | ①Power: red light ②Send data: green light ③Receive data: yellow light |
| Interface Description | ① USB A male; ② RS-485/RS-422 |
| Communication Speed | 300bps~3000000bps |
| Communication Distance | USB end: <=5m; RS-485/RS-422 end: 1200m |
| Supported Systems | Windows 10, 8, 7, XP, Linux, and other systems |
| Warranty | 1 Year |
Ⅱ. Product Introduction

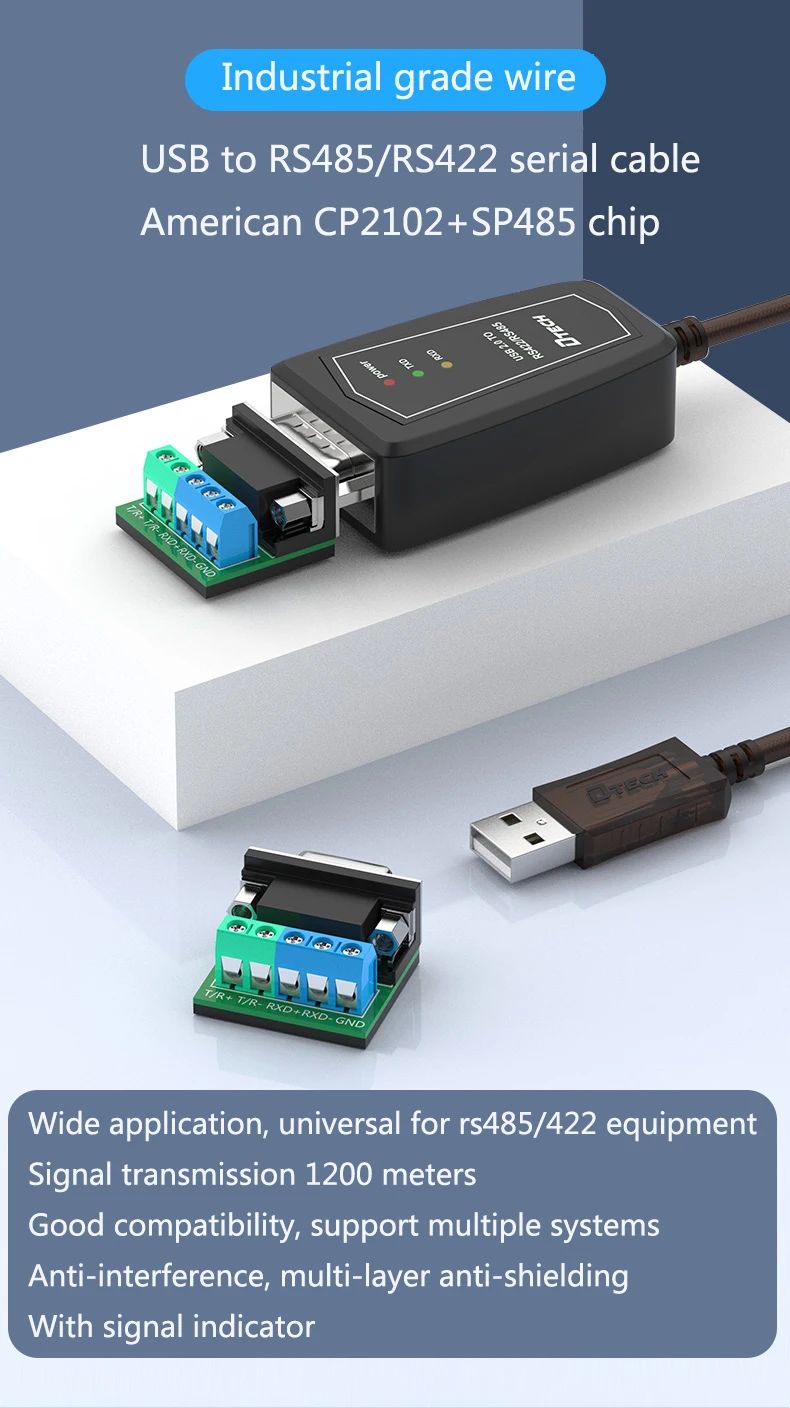

Industrial grade cable
USB to RS485/RS422 serial cable
*Wide application, universal for rs485/422 equipment.
*Signal transmission 1200 meters
*Good compatibility, support multiple systems
*Anti-interference, multi-layer anti-shielding
*With signal indicator

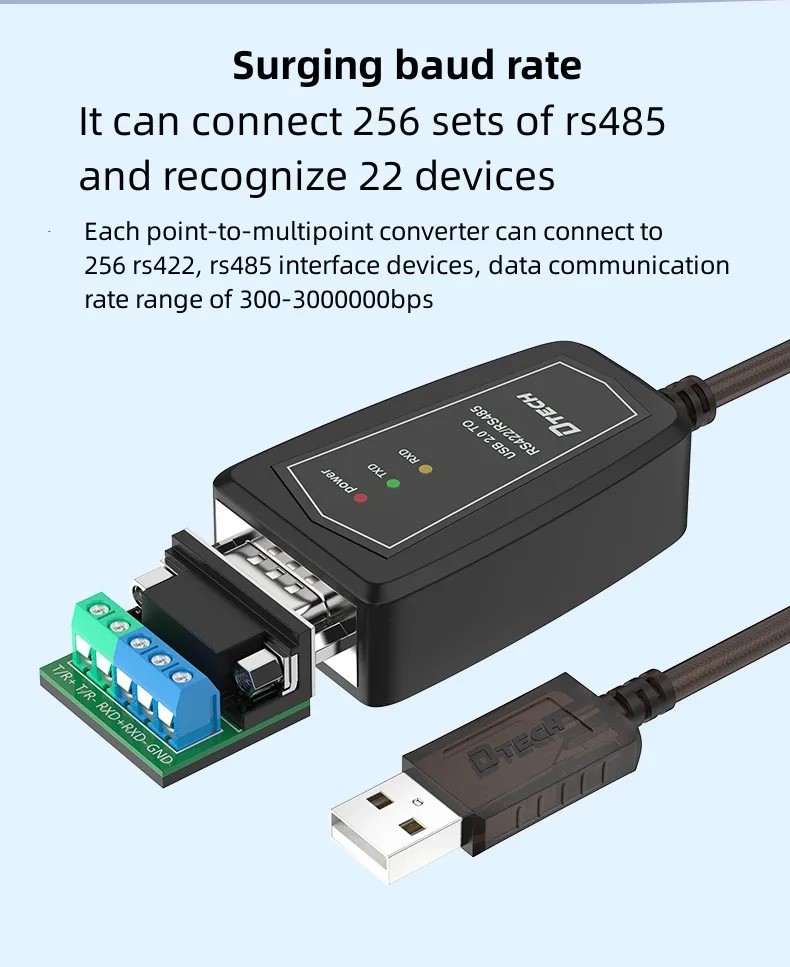

Surging baud rate
It can connect 256 sets of rs485 and recoanize 22 devices. Each point-to-multipoint converter can connect to 256 rs422, rs485 interface devices, data communication rate range of 300-3000000bps.
Three data indicators
Easily see the working state, for your programming debugging to provide convenience.

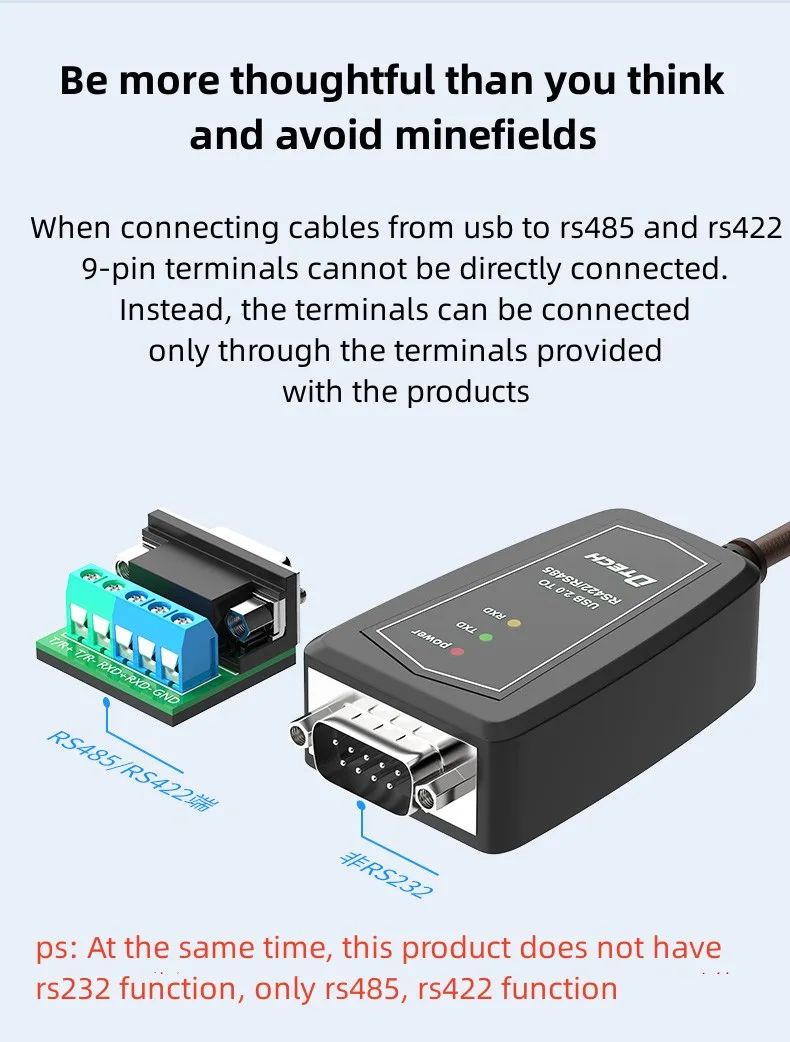

Be more thoughtful than you think and avoid minefields
When connecting cables from usb to rs485 and rs422 9-pin terminals cannot be directly connected. Instead, the terminals can be connected only through the terminals provided with the products.
Support for multiple technologies
Compatible with usb2.0, rs485, rs422 standard protocols. Automatically determine and control the direction of data transmission. Automatic detective serial port signal baud rate.
Filter magnetic ring signal enhancement
With filter magnetic ring, signal transmission is more stable.
Zero delay transceiver conversion
The converter has zero delay transceiver conversion to ensure high-speed data transmission without delay, to ensure that the signal faster running, for your communication to provide a reliable connection.

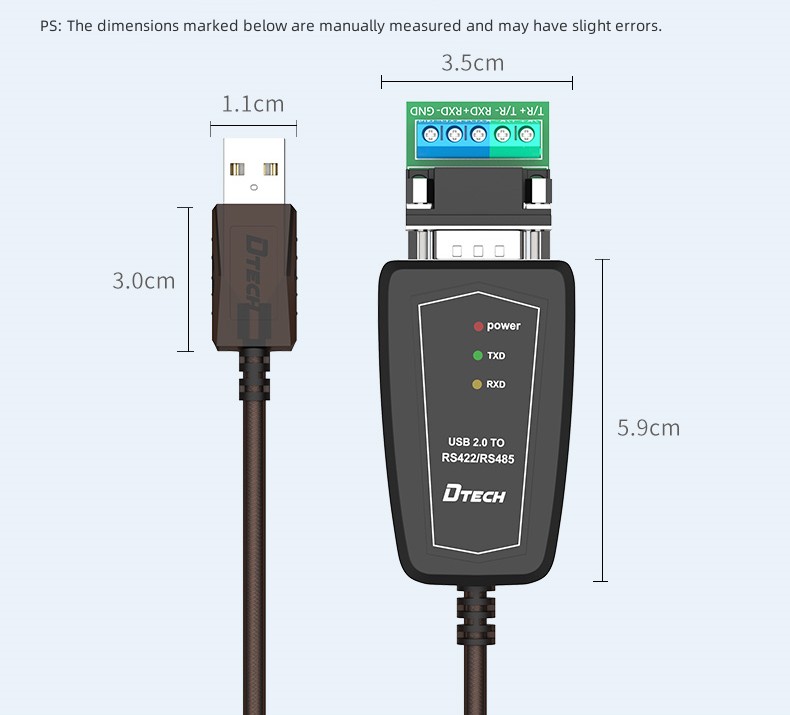

Ⅲ. Product Size
