DTECH IOT6552 1m 1.8m 3m USB to 3.3v TTL UART Serial Converter Wire Debug Cable

DTECH IOT6552 1m 1.8m 3m USB to 3.3v TTL UART Serial Converter Wire Debug Cable

Ⅰ.Product Parameters

Ⅱ.Product Descriptions

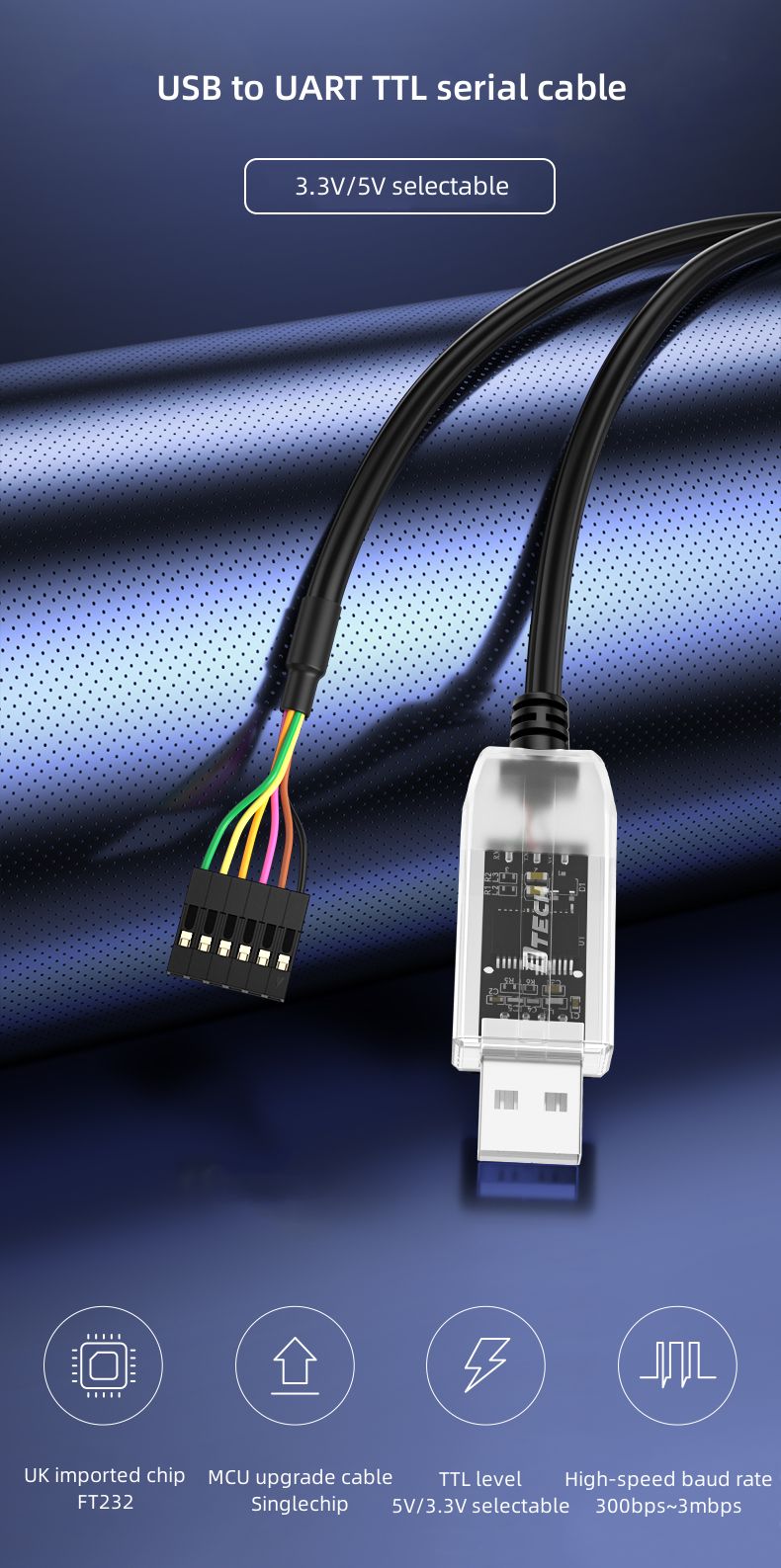

USB to UART TTL serial cable

3.3V/5V selectable

①UK imported chip

FT232

②MCU upgrade cable

Singlechip

③TTL level

5V/3.3V selectable

④High-speed baud rate

300bps~3mbps

High-speed baud rate

Using the FT232 chip imported from the UK to ensure safe and stable data transmission, the transmission rate range is 300bps~3mbps.

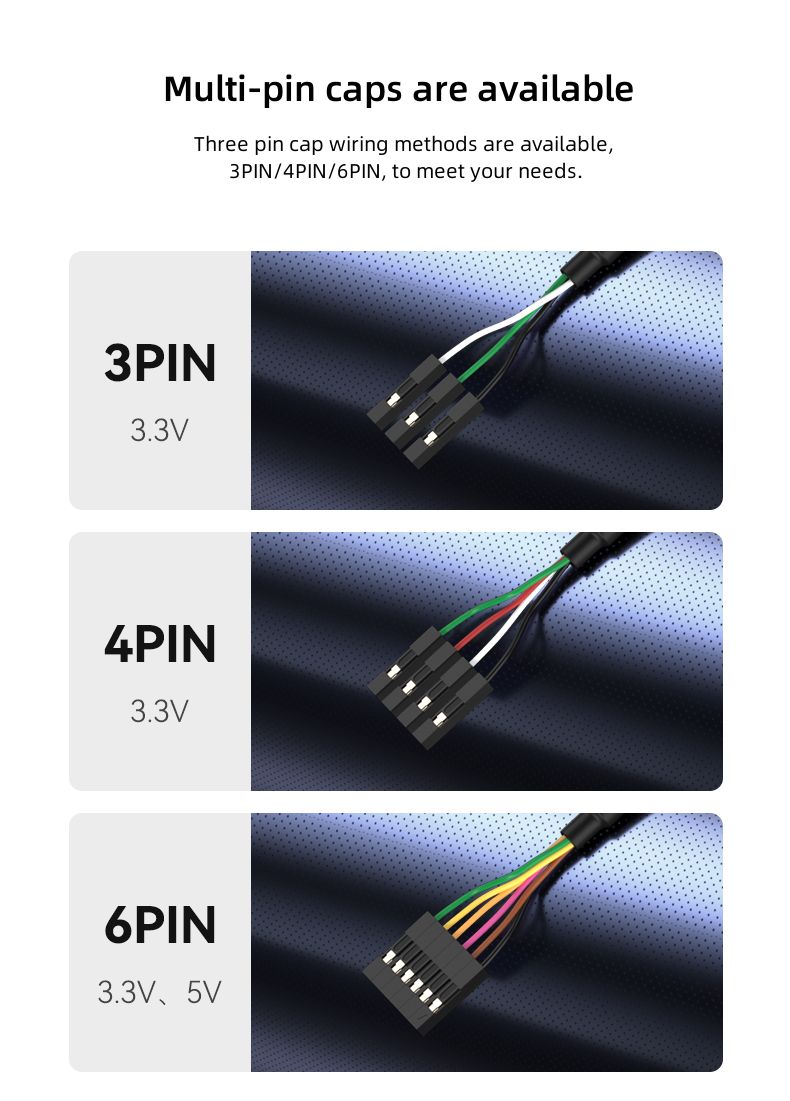

Multi-pin caps are available

Three pin cap wiring methods are available, 3PIN/4PIN/6PIN, to meet your needs.

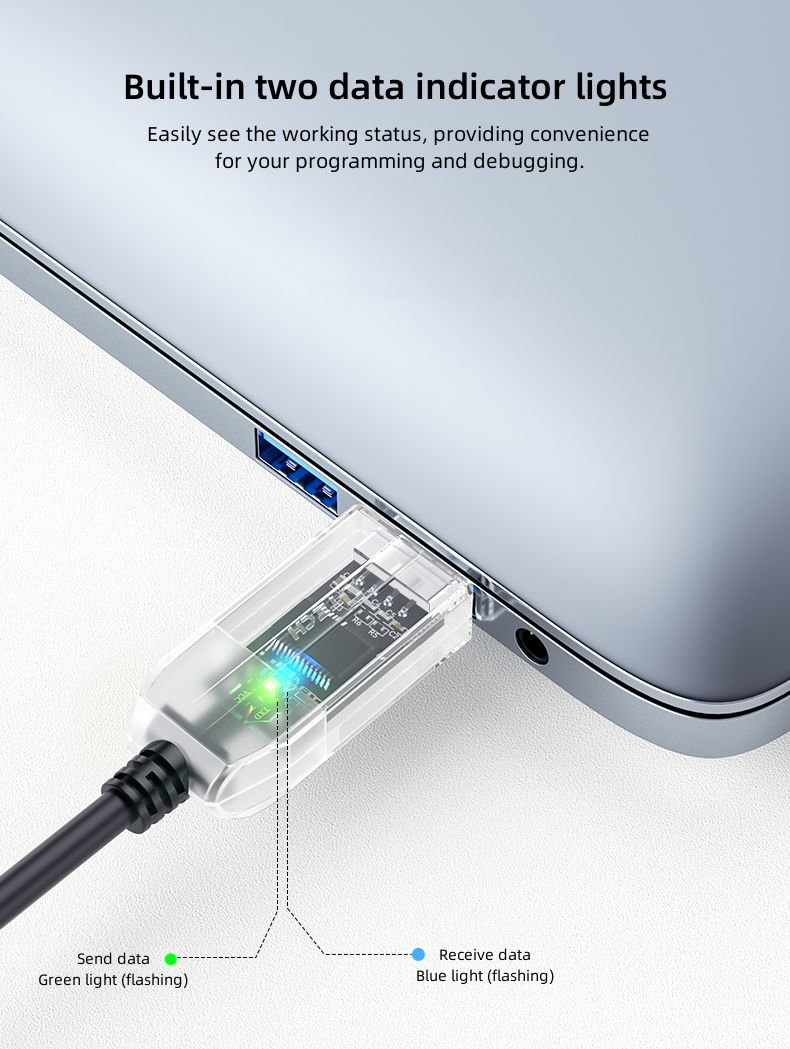

Built-in two data indicator lights

Easily see the working status, providing convenience for your programming and debugging.

①Send data

Green light (flashing)

②Receive data

Blue light (flashing)

Multi-system compatibility

Supports Windows 10/8/8.1/7, Server 2008, XP, Vista, Linux 2.4, etc.

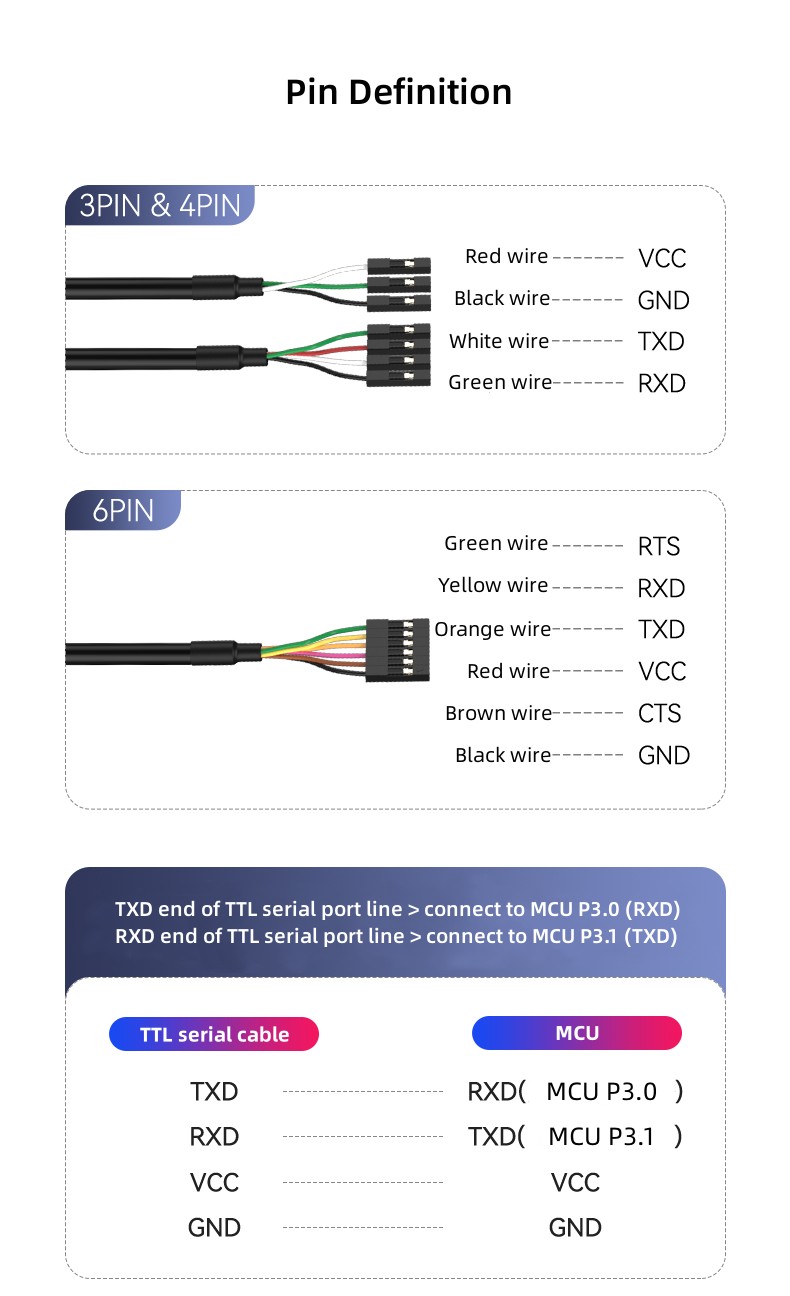

Pin Definition

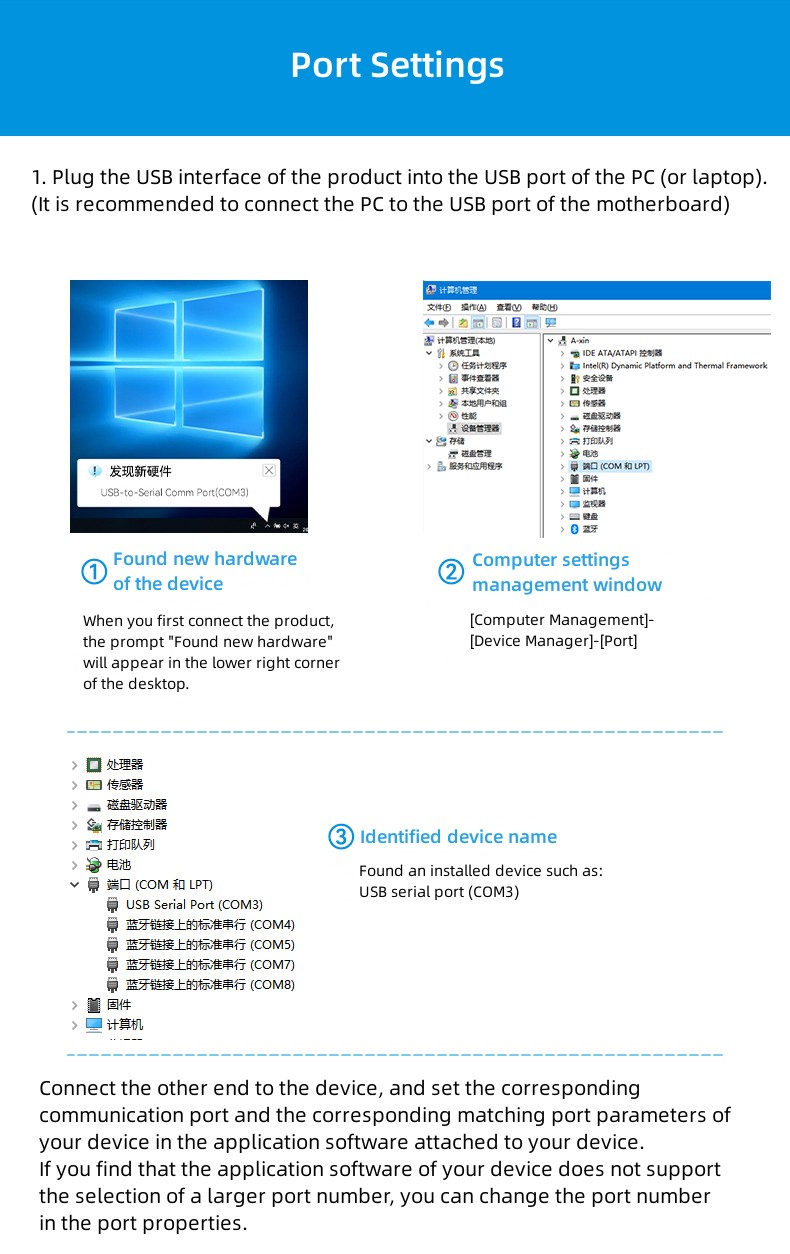

Port Settings

1. Plug the USB interface of the product into the USB port of the PC (or laptop).

(It is recommended to connect the PC to the USB port of the motherboard)

① Found new hardware of the device

When you first connect the product, the prompt “Found new hardware” will appear in the lower right corner of the desktop.

② Computer settings management window

[Computer Management]-[Device Manager]-[Port]

③ Identified device name

Found an installed device such as:

USB serial port (COM3)

2. Connect the other end to the device, and set the corresponding communication port and the corresponding matching port parameters of your device in the application software attached to your device. If you find that the application software of your device does not support the selection of a larger port number, you can change the port number in the port properties.

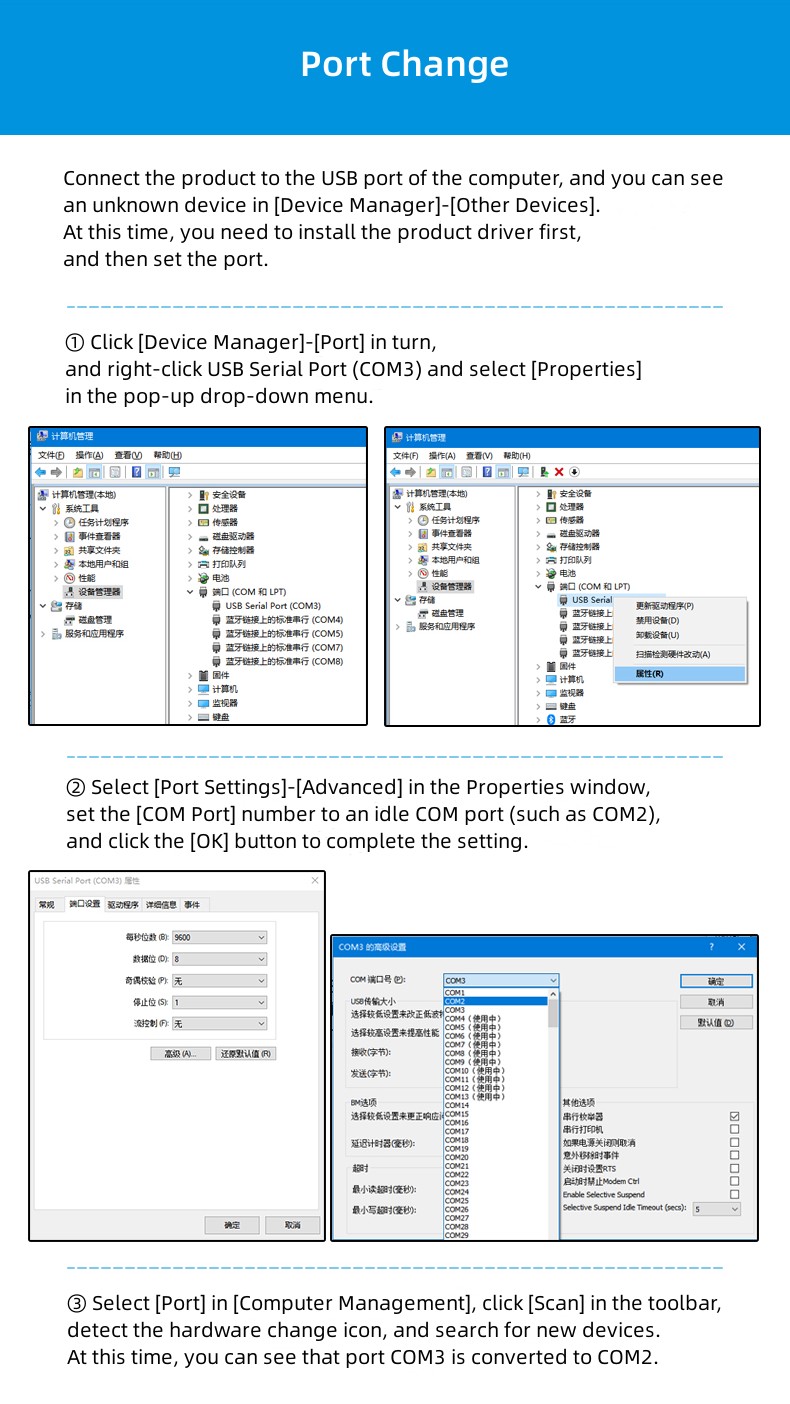

Port Change

Connect the product to the USB port of the computer, and you can see an unknown device in [Device Manager]-[Other Devices]. At this time, you need to install the product driver first, and then set the port.

① Click [Device Manager]-[Port] in turn, and right-click USB Serial Port (COM3) and select [Properties] in the pop-up drop-down menu.

② Select [Port Settings]-[Advanced] in the Properties window, set the [COM Port] number to an idle COM port (such as COM2), and click the [OK] button to complete the setting.

③ Select [Port] in [Computer Management], click [Scan] in the toolbar, detect the hardware change icon, and search for new devices. At this time, you can see that port COM3 is converted to COM2.
