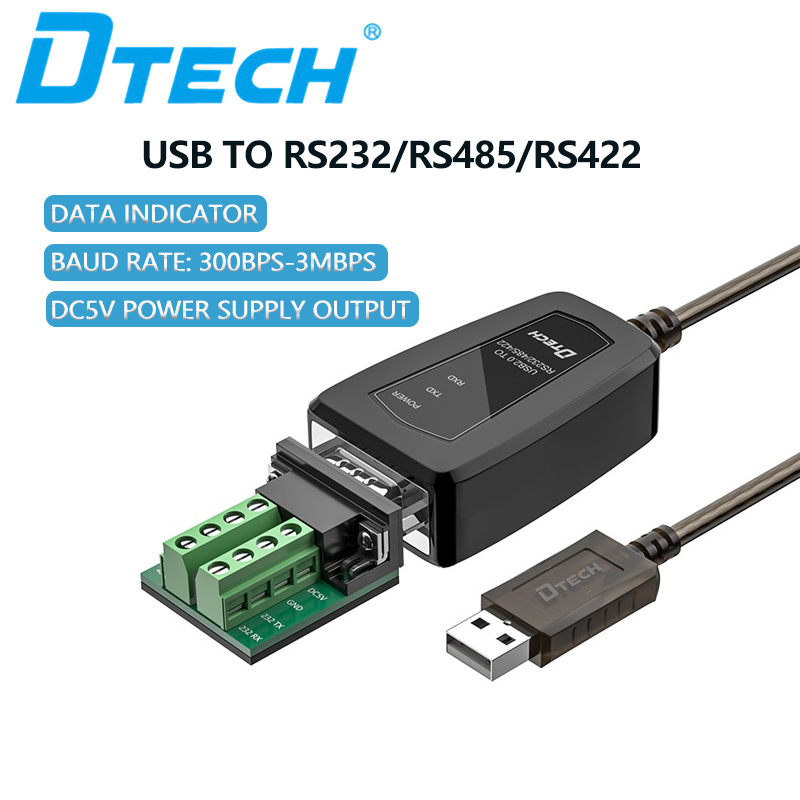

USB to RS232 RS485 RS422 Converter DC 5V Serial Adapter Cable 0.5M

Short Description:

DTECH DT-5019C USB to RS232 RS485 RS422 4 IN 1 serial cable 0.5M for access control systems

Brand: Dtech/OEM

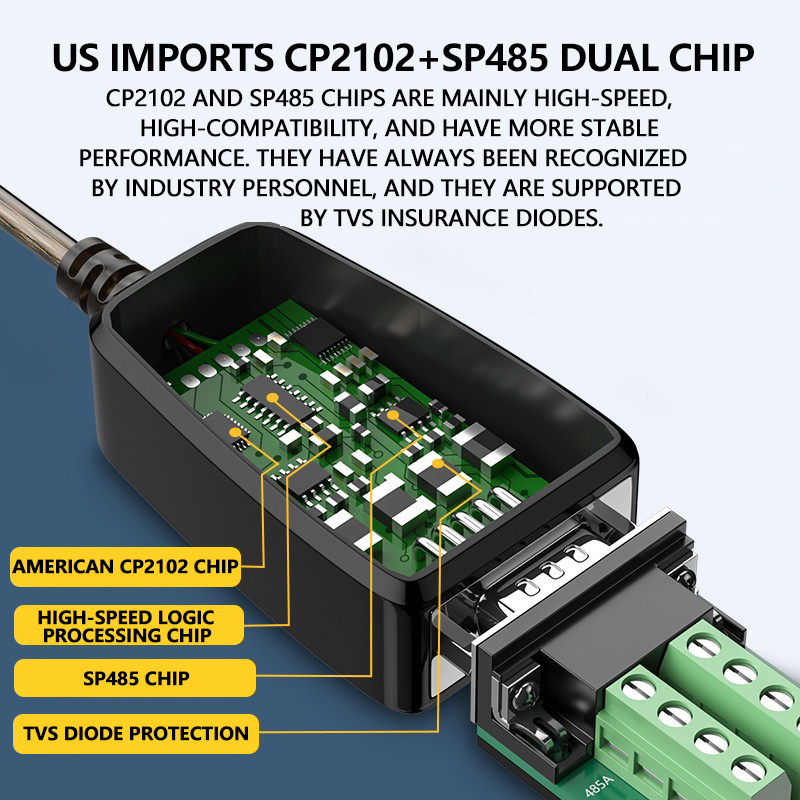

Chipset: CP2102+SP485

PC Interface: USB 2.0

Device Interface: RS232 RS485 RS422

Send email to us PDF Download Whatsapp

Product Detail

Product Tags

This universal USB2.0 to RS232 RS422 RS485 converter requires no external power supply and is compatible with USB2.0 and RS232/422/485 standards. It can convert single-ended USB Type-A Type-C signals to RS232/422/485 signals, providing each line The surge protection power of 600W, and the surge voltage generated on the line for various reasons and the extremely small inter-electrode capacitance ensure the high-speed transmission of the RS232/422/485 interface.

The RS232/422/485 end is connected through the DB9 male connector . The converter is equipped with zero-delay automatic transmission and reception conversion, and the unique I/0 circuit automatically controls the direction of data flow.
