I-DTECH LC UPC Imodi Eyodwa 1 Ikhebula le-Core Fiber Optic Jumper LC Ku-LC Optical Patch Cord

Incazelo emfushane:

Intuthu ephansi ne-halogen-free
Ikhava yangaphandle ye-LSZH, ihambisana nemvelo, iphephile futhi inokwethenjelwa

Igama Lomkhiqizo:I-Fiber Optic Jumper

Ibhrendi:I-DTECH

Imodeli:I-DT-LC/LC 001

Thumela i-imeyili kithi I-PDF Download Whatsapp

Imininingwane Yomkhiqizo

Omaka bomkhiqizo

I-DTECH LC UPC Imodi Eyodwa 1 I-Core Fiber OpticI-Jumper Cable LC Kuya ku-LCI-OpticalPatch Cord

Ⅰ.Amapharamitha womkhiqizo

Igama Lomkhiqizo	I-Fiber Optic Jumper
Ibhrendi	I-DTECH
Imodeli	I-DT-LC/LC 001
Ubude bekhebula	1m/2m/3m/5m/10m/15m/20m/25m/30m
Uhlobo lweFiber	Imodi eyodwa umongo owodwa
Isivinini	1.25G/10G/25G/40G
Ububanzi bekhebula	3.0mm
I-Flame Retardant Level	I-IEC 60332-1-2
Okubalulekile	Intambo ye-Aramid+intuthu ephansi ne-halogen-free (LSZH)
Ukulahlekelwa Kokufaka	Inani elijwayelekile elingu-0.20dB, inani eliphakeme ngu-0.30dB
Buyisela Ukulahlekelwa	>=50dB
I-Tensile Test	Amandla e-tensile 70N
Iwaranti	1 Unyaka

Ⅱ.Incazelo Yomkhiqizo

I-LC Fiber Optic Jumper

I-LC-LC yemodi eyodwa ye-fiber optic jumper

Sisebenzisa izinto ezintsha kanye nobuchwepheshe bokukhiqiza obusezingeni eliphezulu, sixazulula izinkinga ezinjengokuhosha kakhulu, ukunqanyulwa kwe-inthanethi, kanye nevidiyo.

I-LC Fiber Optic Jumper

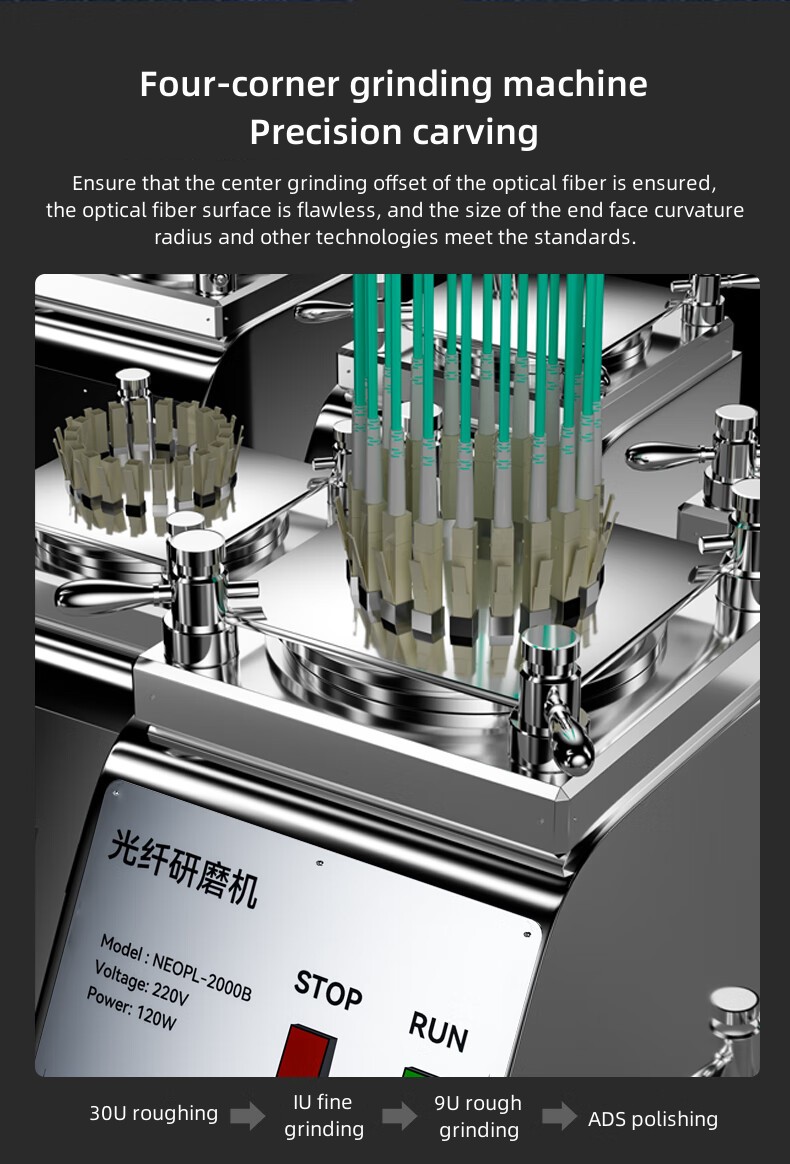

Umshini wokugaya onamakhona amane, ukudweba okunembayo
Qinisekisa ukuthi i-offset yokugaya emaphakathi ye-fiber optical iqinisekisiwe, i-optical fiber surface ayinasici, kanye nosayizi wokugoba kobuso bokugcina.

irediyasi nobunye ubuchwepheshe buhlangabezana namazinga.

I-LC Fiber Optic Jumper

Intuthu ephansi futhi ayinayo i-halogen, iqinisekisa ukuphepha kwesikhungo sedatha
Intuthu ephansi enobungani nemvelo nekhava yempahla engena-halogen, impilo ende yesevisi, ayigugi futhi imelana nokugqwala, ayihambisani nemvelo futhi ayinaphunga.
01. Okukhethiwe okungu-94VO kwempahla yokusetshenziswa engabusheki ilangabi, izintambo zihlangabezana nezidingo ze-IEC60332-1-2 ne-GB/T18380.12-2008.
02. Ngesikhathi sokusha, ukuminyana kwentuthu okuminyene kuphansi, futhi ukudluliswa kuphezulu njengo-86.4%, okuphansi kakhulu kunezidingo zentuthu eziphansi ze-IEC 61034-2.
03. Okuqukethwe kwegesi ye-halogen acid kuhlangabezana nezidingo ze-halogen-free ze-IEC 60754-1:2011, ngaphandle kwezakhi ze-halogen, okwenza kuphephe ukusetshenziswa.

I-LC Fiber Optic Jumper

Idizayini eqinile, izixhumi ze-fiber optic zimelana nokushutheka nokukhipha
Isixhumi se-LC se-fiber optic jumper siphumelele ukuhlolwa kwe-tensile, ngamandla asebenzayo we-70N (cishe ama-7kg).Lapho ihlolwe ngaphansi
amandla aqinile we-70N, ushintsho ekulahlekeni kokufaka phakathi nehora elingu-1 ngu-≤ 0.3dB.
I-LC Fiber Optic Jumper

I-fiber core engenisiwe, ayizwani nokugoba
Ukusebenza kahle komshini, ukushisela okulula nokulahlekelwa ukukhanya okuphansi, ukudluliswa okusheshayo nokuzinzile.

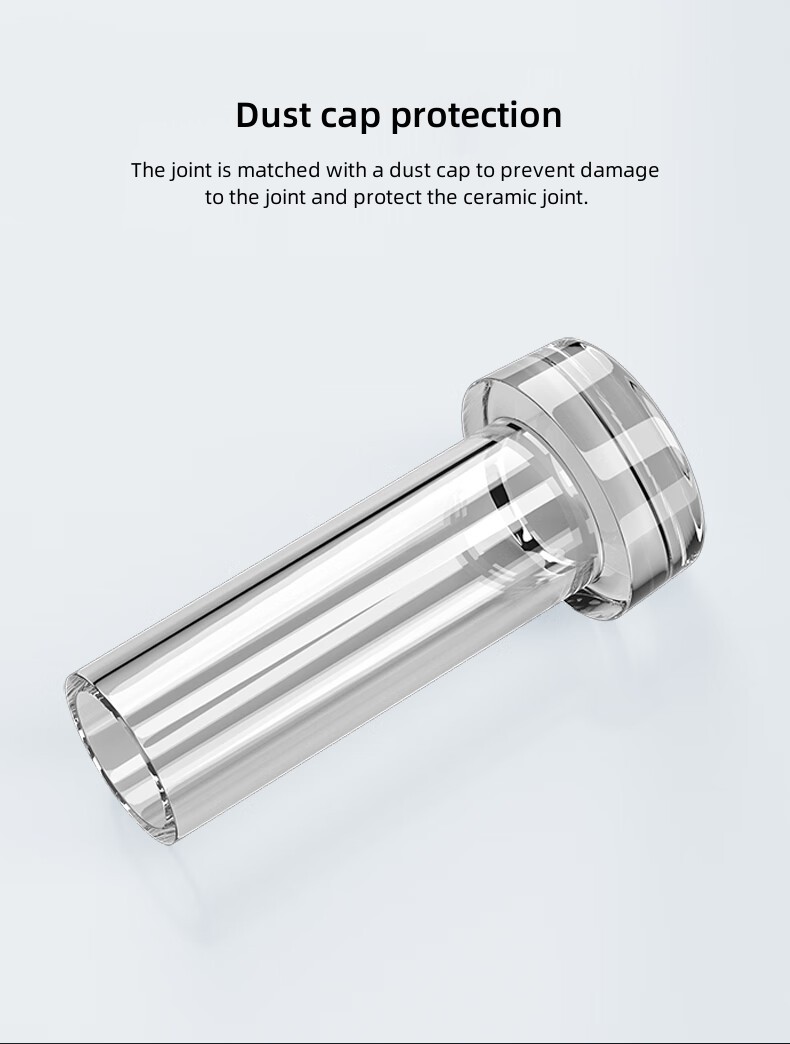

Ukuvikela isivalo sothuli
I-joint ifaniswe nesigqoko sothuli ukuvimbela ukulimala ekuhlanganyeleni nokuvikela i-ceramic joint.

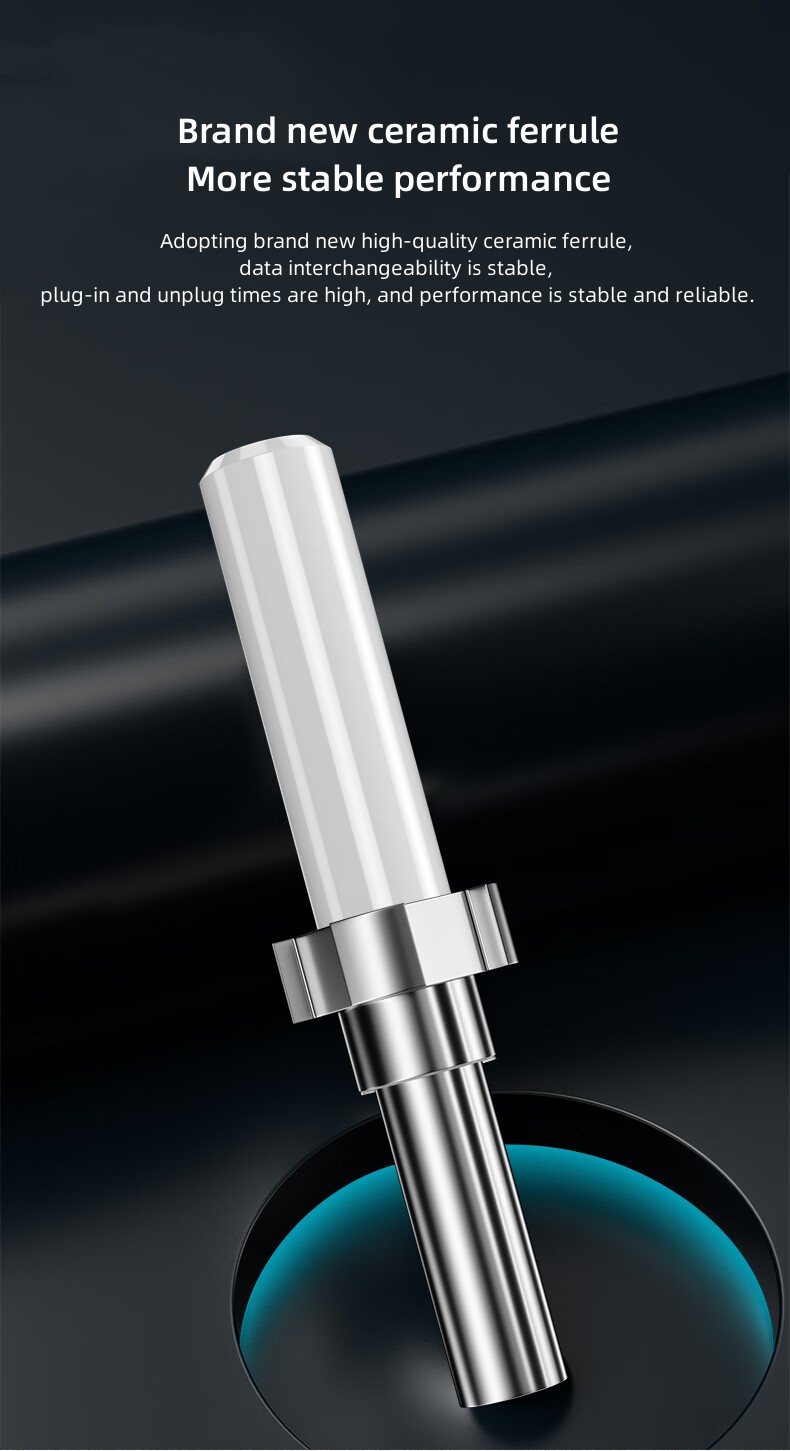

Isitsha se-ceramic esisha sha
Ukusebenza okuzinzile
Ukwamukela i-ceramic ferrule entsha yekhwalithi ephezulu, ukushintshaniswa kwedatha kuzinzile, izikhathi ze-plug-in nezokukhipha ziphezulu, futhi ukusebenza kuzinzile futhi kuthembekile.

Ⅲ.Isicelo Scenario

I-LC Fiber Optic Jumper
